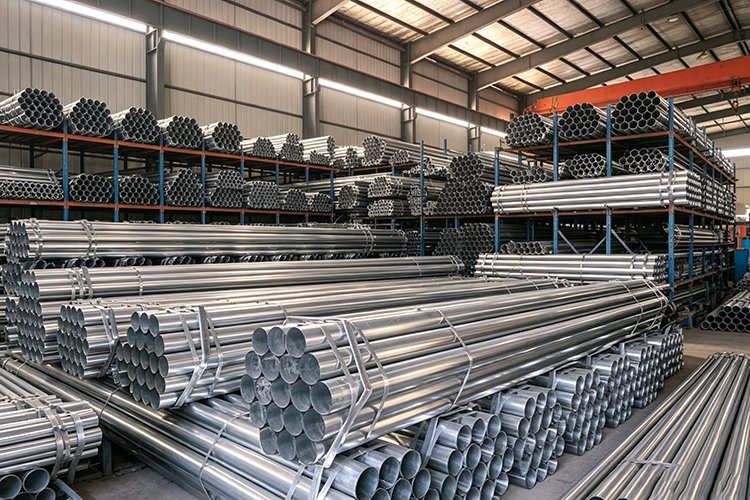

Your Profesional Galvanized Steel Pipe Manufacturer
We produce various types of galvanized steel pipes to meet your project needs, and can customize them according to different projects, sizes, thicknesses, etc.
We can also cut pipes to your specifications. Free samples are available for you to inspect the quality.
Send Your Inquiry Today
Get Hongkehua Galvanized Steel Pipe Delight Your Project
High zinc coated hot dipped galvanized pipes are prized for their strength, resistance to corrosion, and adaptability to outdoor and industrial environments.
A galvanized steel pipe with a high zinc coating is produced by immersing steel pipe in molten zinc, forming a durable metallurgical bond between the zinc layer and the steel surface. This coating acts as a protective barrier against rust and corrosion, making the pipe well-suited for a variety of demanding applications, especially those exposed to the elements or aggressive conditions.
Galvanized Steel Pipe Sizes & Specifications
| DN | OD | ASTM A53/API 5L/ASTM A795 | BS1387/EN10255 | |||||
| SCH10S | STD SCH40 | SCH80 | Light | Medium | Heavy | |||
| MM | INCH | MM | MM | MM | MM | MM | MM | |
| 15 | 21.3 | 1/2″ | 2.11 | 2.77 | 3.73 | 2 | 2.6 | |
| 20 | 26.7 | 3/4″ | 2.11 | 2.87 | 3.91 | 2.3 | 2.6 | 3.2 |
| 25 | 33.4 | 1″ | 2.77 | 3.38 | 4.55 | 2.6 | 3.2 | 4 |
| 32 | 42.2 | 1-1/4″ | 2.77 | 3.56 | 4.85 | 2.6 | 3.2 | 4 |
| 40 | 48.3 | 1-1/2″ | 2.77 | 3.68 | 5.08 | 2.9 | 3.2 | 4 |
| 50 | 60.3 | 2″ | 2.77 | 3.91 | 5.54 | 2.9 | 3.6 | 4.5 |
| 65 | 73 or 76 | 2-1/2″ | 3.05 | 5.16 | 7.01 | 3.2 | 3.6 | 4.5 |
| 80 | 88.9 | 3″ | 3.05 | 5.49 | 7.62 | 3.2 | 4 | 5 |
| 90 | 101.6 | 3-1/2″ | 3.05 | 5.74 | 8.08 | |||
| 100 | 114.3 | 4″ | 3.05 | 6.02 | 8.56 | 3.6 | 4.5 | 5.4 |
| 125 | 141.3 | 5″ | 3.4 | 6.55 | 9.53 | 5 | 5.4 | |
| 150 | 168.3 | 6″ | 3.4 | 7.11 | 10.97 | 5 | 5.4 | |
| 200 | 219.1 | 8″ | 3.76 | 8.18 | 12.7 | |||
| 250 | 273.1 | 10″ | 4.19 | 9.27 | 15.09 | |||

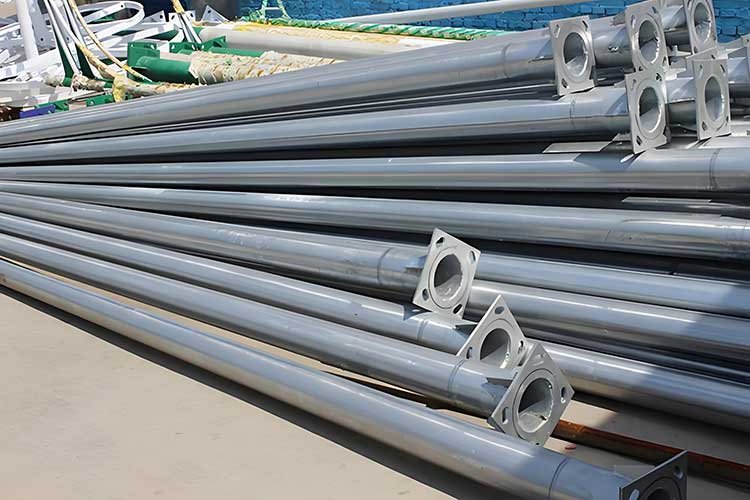

Features of Galvanized Steel Pipe
The thick zinc layer offers superior protection, enhancing the pipe’s durability and extending its service life in uses such as water delivery, drainage systems, gas transport, construction projects, and industrial manufacturing. Thanks to its high zinc content, the coating provides robust corrosion resistance, making it a dependable choice where long-term protection against rust and material degradation is essential.
Send Your Inquiry Today


Advantages of Galvanized Steel Pipe
Galvanized steel pipes have high mechanical strength and stable pressure resistance. They are easy to process, including threading, cutting, and welding, and come with a full range of matching fittings, resulting in high on-site installation efficiency. The hot-dip galvanized layer on the surface provides double anti-corrosion protection, effectively delaying the oxidation and rusting of the steel pipe. They are suitable for various working conditions such as fire protection, gas supply, and general water supply in dry indoor environments. With low procurement and overall construction costs, they are a cost-effective pipe material for civil buildings, temporary pipelines on construction sites, and shed construction.
Send Your Inquiry Today

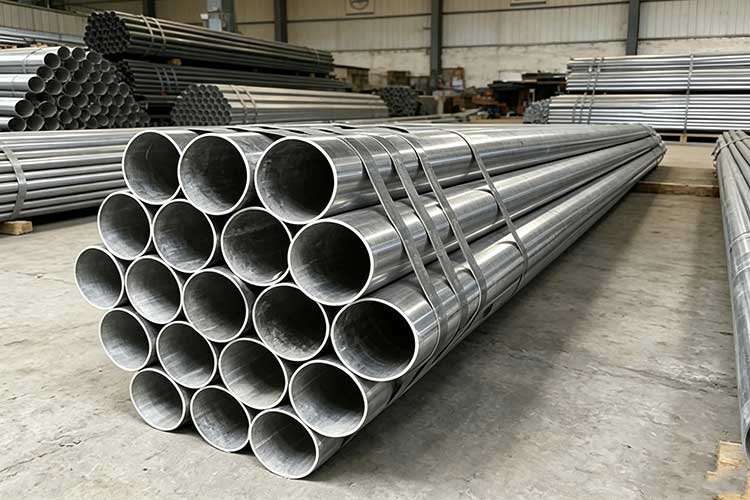

Application of Galvanized Steel Pipe
Galvanized steel pipes are widely used in building fire sprinklers, indoor general water supply and drainage, low-pressure gas transmission, steel structure conduit, greenhouse construction, factory support, municipal low-pressure fluid pipelines, and are also commonly used pipes for farmland irrigation and temporary water supply on construction sites. They are mostly suitable for ordinary working conditions that are dry indoors and free from strong corrosion.
Send Your Inquiry Today


Hongkehua Steel Pipes is fantastic! All the pipes are exactly as described and extremely sturdy. They are perfect for my oil transportation project. Shipping was fast and the packaging was excellent. I highly recommend this seller to anyone looking for reliable steel pipes.
Our Project Cases
FAQ
Purchase steel pipes and fittings directly from manufacturers
We supply steel pipes and fittings for fire protection systems, municipal drainage, irrigation, mining, and infrastructure projects worldwide!
Send Your Inquiry Today
